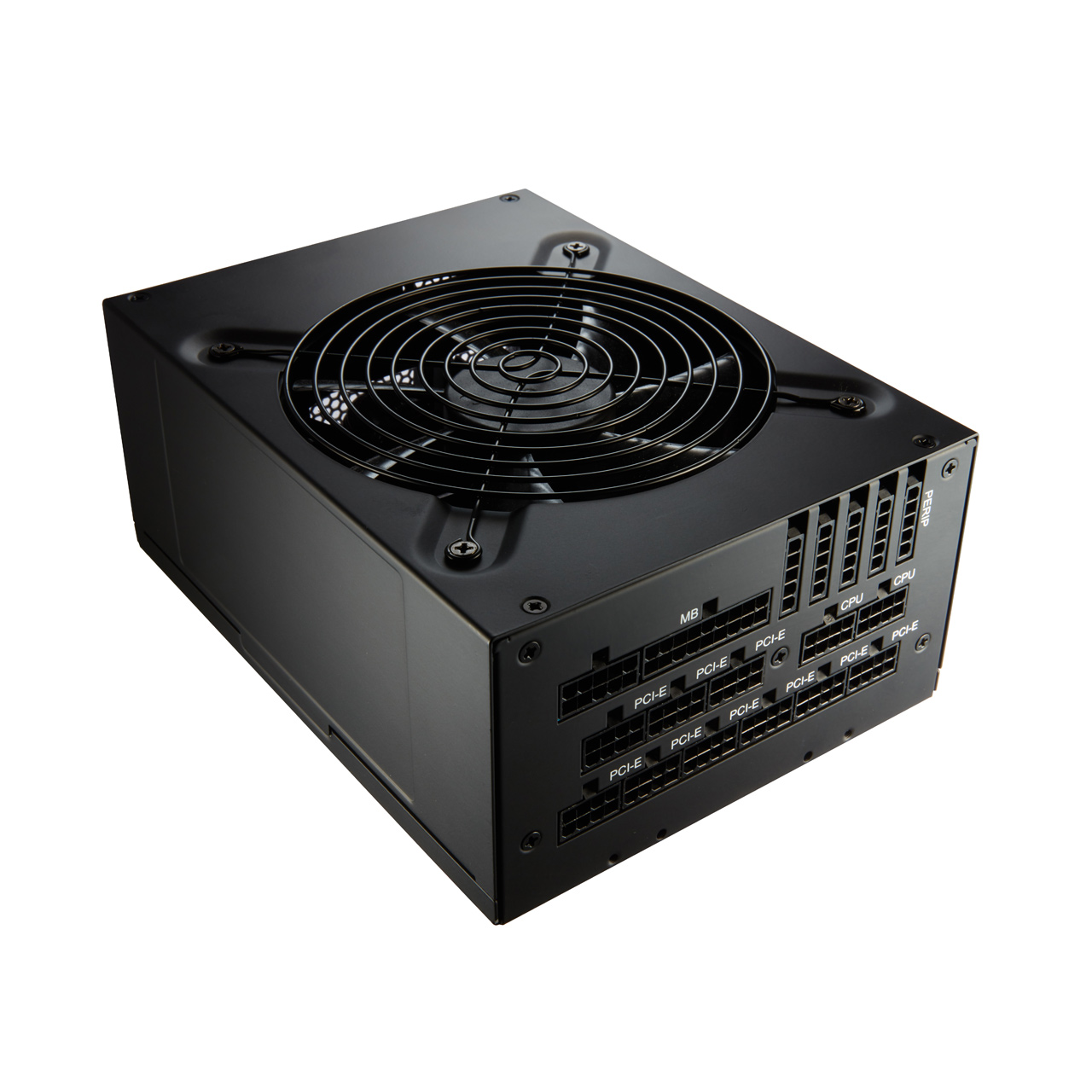

CANNON 2000W

FSP

CANNON 2000W has been designed to provide stable output for your mining rigs with features such as 18 sets of PCI-E 6+2 PIN slots, and a 135mm FDB fan with internal component arrangement for increased airflow at rigorous mining environments. CANNON 2000W is definitely a premium on high efficiency PSUs for your mining rigs.

Description
Specification

Complies with ATX12 v2.4 & EPS12 v2.92
Efficiency ≧ 92% @ typical Load
Active PFC ≧ 0.9
Hold up time > 17ms @ full load
Full modular design with all black round cable
Supports dual sets of CPU slots
Provides 18pcs PCI-e for high-load system
+12V single-rail design
5V & 3.3V rail with DC to DC Design
Intelligent fan control with 135mm fan
Standby wattage < 0.5W
Complete protections: OVP, OCP, UVP, SCP, OPP, OTP

Model   FSP2000-50AGPBI
Rated Output Power       2000W @ 200-240Vac
Form Factor        ATX / EPS
Input Voltage     100-240Vac
Input Current     15-12A
Input Frequency               50-60Hz
PFC        Active PFC > 0.9
Efficiency            92% @ typical load
Fan Type              135mm FDB Fan
Dimensions(L x W x H)    200 X 150 X 86mm
Weight 2.64 kg
Protection           OCP/OVP/OPP/SCP/UVP/OTP
Safety Approval TUV / CE / UL / FCC / RCM / BSMI / KC
