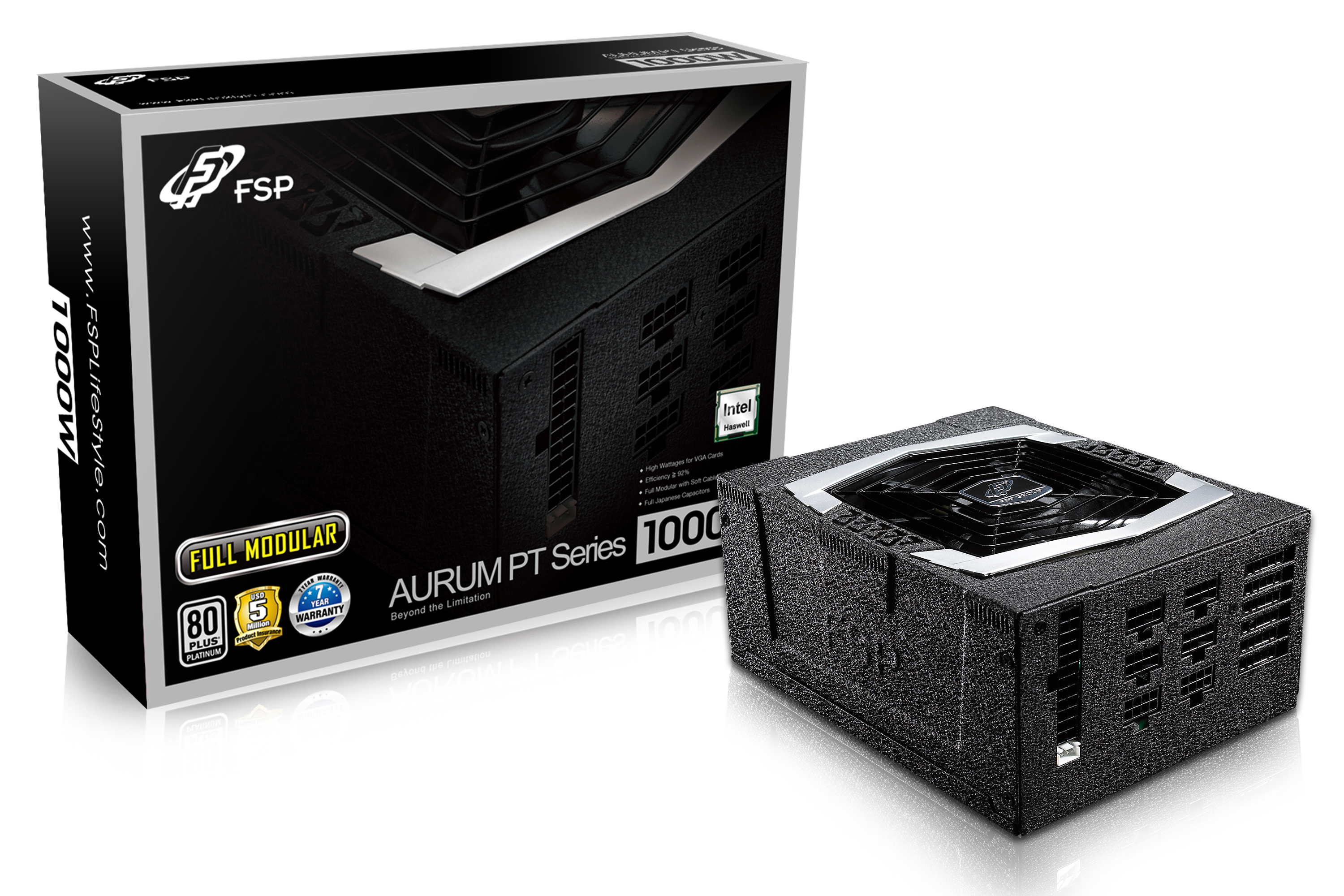

AURUM PT 1000W

FSP

FSP new PSU-AURUM PT Series has 80 PLUS® Platinum certification and features full industrial-grade Japanese capacitors and full modular. It is the ultimate design for gaming enthusiast and overclocker ever!

Description
Specification

Complies with ATX12 v2.4 & EPS12 v2.92
High efficiency ≧ 92%
Active PFC ≧ 99%
High Wattages with 80PLUS® Platinum Certification
+12V Single-Rail Design
Full Modular with Soft Cables
Full Japanese Capacitors
8 x 6+2 pin PCI-Express Connectors
Quiet and Long-Lasting 135mm FDB Fan
Complete Protections: OCP, OVP, SCP, OPP, UVP, OTP
Global Safety Approved
Fully Compatible with 4th Generation Intel Core Series Processors
SATA Array Cable, Easy Installation
+12V Single Rail Design
Quiet and durable cooling
105 °C Japanese-made Capacitor and Solid Capacitor
Active PFC
2013 ErP/EuP Ready

Model   PT-1000FM
Rated Output Power       1000W
Form Factor        ATX12V V2.4 & EPS12V V2.92
80 PLUS Certification      PLATINUM
Input Voltage     110-240Vac (Full Range)
Input Current     8-14A
Input Frequency               50~60Hz
PFC        Active PFC (>0.9 typical)
Efficiency            >92%@ Typical Load
Fan Type              135mm FDB Fan
Noise     < 21 dBA
Dimensions(Lx W x H)     190 x 150 x 86mm / 7.5 x 5.9 x 3.4 inch
Weight 3410g
Operation Temp.              0~40°C / 32°F~104°F
Protection           OCP/OVP/ SCP/ OPP/ UVP/ OTP
Safety Approval CE/TUV/FCC/EAC/CCC/BSMI/RCM/KC
